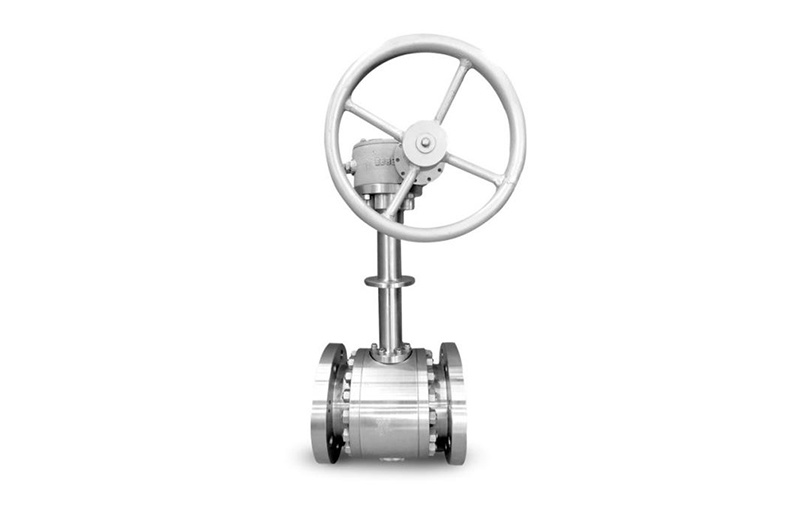

CRY Cryogenic Ball Valve
Size Range: 2”-24”
Pressure Class: ANSI 150-4500
API 2000-15000
- PRODUCT DESCRIPTION
-
- 商品名称: CRY Cryogenic Ball Valve
TCX Series CRY cryogenic ball valve is suitable for service of working temperature down to －196℃, such as LNG, LPG, and air separation industry. CRY cryogenic trunnion ball valves are produced by the most advanced technology. It is designed with LIP SEAL which can keep valves with excellent sealing performance in ultra-low temperature.<br> Size Range: 2”-24”<br> Pressure Class: ANSI 150-4500<br> API 2000-15000
MAIN FEATURES AND OPTIONS
Two or three pieces body construction; bolted joints
Available in floating and trunnion construction
Extremely wide selection of materials for both body and internals, including: carbon steel, low alloy steels, stainless steels, Duplex 22/25 Cr, Ni-alloys and titanium
Overlays: Alloy 625 / 316L
Coatings: Tungsten Carbide / Chromium Carbide / ENP
Soft or Metal Seated
Single or Double Piston Effect Seat
Double block and bleed
Overlay on Sealing Surfaces Only
Cladding in Seat Pocket Areas
Fully Internally Clad
NOTES

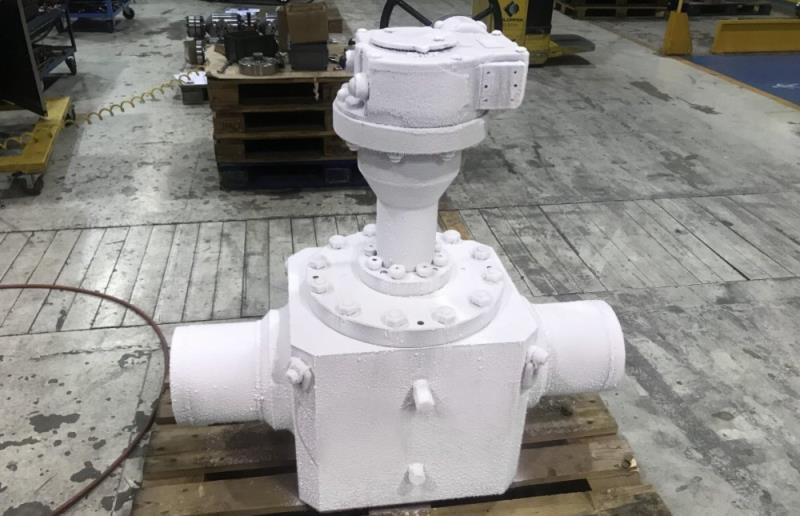

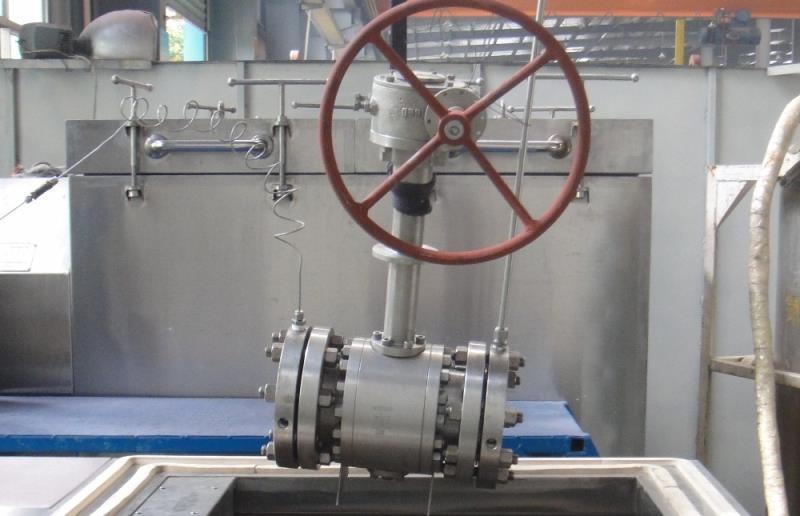

Many applications require valves to be suitable for low temperature operation or operation at cryogenic conditions. When operating temperature is lower than -50° C it is highly recommended to provide a bonnet extension and the use of a valve designed on purpose for a reliable and safe operation at these critical conditions (i.e. sealing system by means of lip-seals instead of O-rings). Valves are tested at low or cryogenic temperature according to the operating conditions and to the project / customer specifications.
Company Introduction
TCX VALVE GROP is a global valves supplier created through the efforts of dedicated people with advanced technology in valves design and produce to achieve the highest quality products and package services. TCX VALVE has specialized in the industrial valves production over than fifteen years.
TCX has own production facilities for different industrial valves in various materials, and designed according to internationally accepted standards such as API ,ANSI,DIN and BS. Our products and services are supplied to more than 50 countries worldwide. This global network permits close cooperation with our clients and End-users ensuring high service and customer satisfaction. We focus on Valuing our valves for our clients, EPC and End-users.
Cooperative Partner
Related Products
Up to now, we have also established long-term, win-win partnerships with a number of large steel mills. We are the first-level agent for Chinese state-owned enterprises Shanghai Baosteel and Taigang Iron and Steel Group.Our products can meet every unique requirement of our customers.
Size: NPS 2"~ 30"(DN50~DN750)
Pressure: ASME CLASS 150~900(PN20~PN150)
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel,exotic alloy etc.
Connection: RF,RTJ
Operation: Manual, Pneumatic, Electric
Size: NPS 2"-12"(DN50-DN300)
Pressure: ASME CLASS 150~1500(PN20~PN250)
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel,exotic alloy etc.
Connection: RF,RTJ
Operation: Manual, Pneumatic, Electric
Size: NPS 2"~ 30"(DN50~DN750)
Pressure: ASME CLASS 150~900(PN20~PN150)
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel,exotic alloy etc.
Connection: RF, RTJ
Operation: Manual, Pneumatic, Electric
API6D Trunnion-mounted ball valve
Size: NPS 2"~24" (DN50~DN600)
Pressure: ASME CLASS 150~2500(PN20~PN420)
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel ,exotic alloy etc.
Connection: RF, BW, RTJ
Operation: Manual, Pneumatic, Electric
