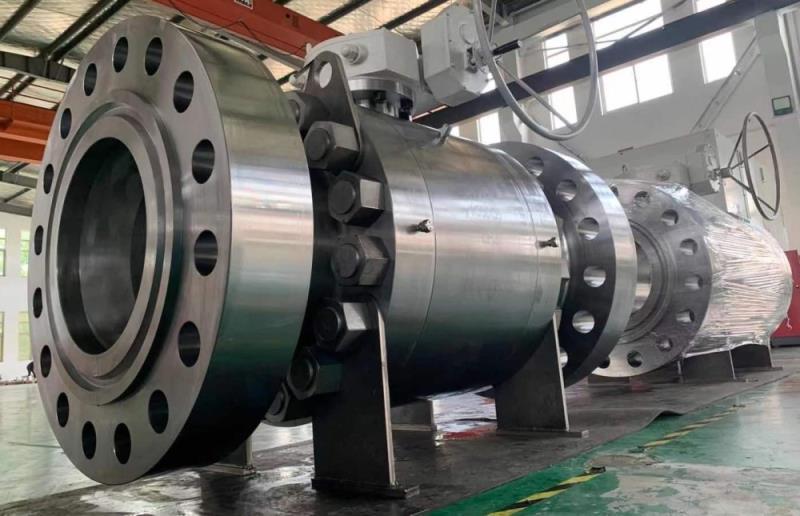

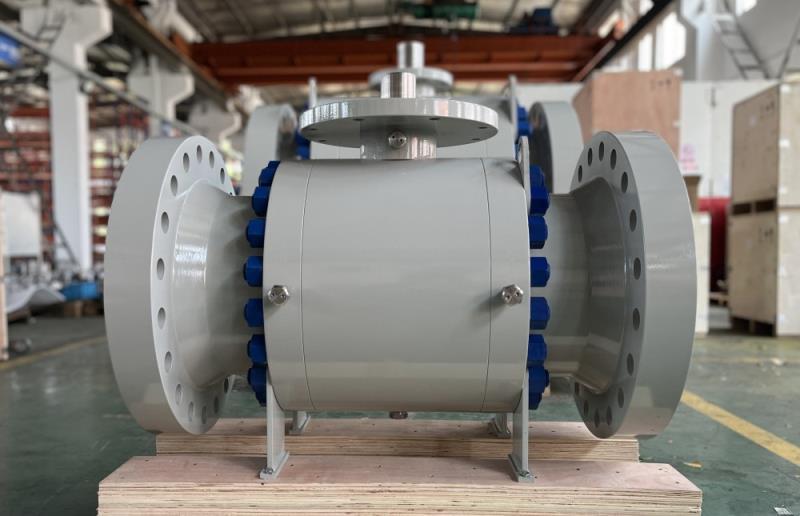

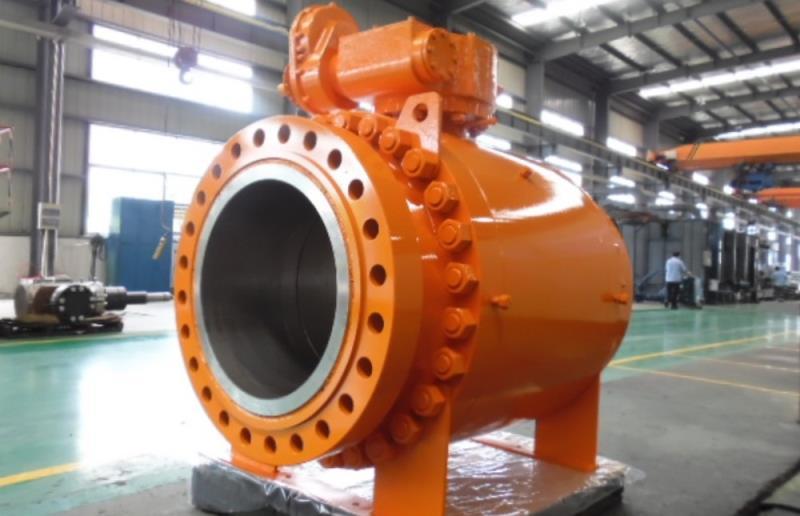

TM3 Trunnion Side Entry Ball Valve
Size Range: 2”-60”
Pressure Class： ANSI 150-4500
API 2000-15000
- PRODUCT DESCRIPTION
-
- 商品名称: TM3 Trunnion Side Entry Ball Valve
TCX Series TM3 trunnion mounted ball valves are designed in accordance with API6D featuring 2 pc or 3 pc split body side entry design. Wide range of sealing material including PTFE, Peek, Devlon, Nylon etc, valve can be used in working temperature range -46℃~ 200℃. This series of TM3 ball valves are optional designed with Double block and bleed or double piston type. All TM3 ball valves are equipped with sealant injection system for both stem and seats to allow external intervention to prevent seat or stem leakage. TM3 trunnion mounted ball valves is fire safe test certified by ECM’s Register per API607.<br> Size Range: 2”-60”<br> Pressure Class： ANSI 150-4500<br> API 2000-15000
MAIN FEATURES AND OPTIONS
Two or three pieces body construction; bolted joints
Extremely wide selection of materials for both body and internals, including: carbon steel, low alloy steels, stainless steels, Duplex 22/25 Cr, Ni-alloys and titanium
Overlays: Alloy 625 / 316L
Coatings: Tungsten Carbide / Chromium Carbide / ENP
Soft or Metal Seated
Single or Double Piston Effect Seat
Double block and bleed
Overlay on Sealing Surfaces Only
Cladding in Seat Pocket Areas
Fully Internally Clad
Specific design for HIPPS, ESD application
Special constructions available for High and Low Temperature (Cryogenic), erosive /abrasive, corrosive service
Company Introduction
TCX VALVE GROP is a global valves supplier created through the efforts of dedicated people with advanced technology in valves design and produce to achieve the highest quality products and package services. TCX VALVE has specialized in the industrial valves production over than fifteen years.
TCX has own production facilities for different industrial valves in various materials, and designed according to internationally accepted standards such as API ,ANSI,DIN and BS. Our products and services are supplied to more than 50 countries worldwide. This global network permits close cooperation with our clients and End-users ensuring high service and customer satisfaction. We focus on Valuing our valves for our clients, EPC and End-users.
Cooperative Partner
Related Products
Up to now, we have also established long-term, win-win partnerships with a number of large steel mills. We are the first-level agent for Chinese state-owned enterprises Shanghai Baosteel and Taigang Iron and Steel Group.Our products can meet every unique requirement of our customers.
Size: NPS 2"~ 30"(DN50~DN750)
Pressure: ASME CLASS 150~900(PN20~PN150)
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel,exotic alloy etc.
Connection: RF,RTJ
Operation: Manual, Pneumatic, Electric
Size: NPS 2"-12"(DN50-DN300)
Pressure: ASME CLASS 150~1500(PN20~PN250)
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel,exotic alloy etc.
Connection: RF,RTJ
Operation: Manual, Pneumatic, Electric
Size: NPS 2"~ 30"(DN50~DN750)
Pressure: ASME CLASS 150~900(PN20~PN150)
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel,exotic alloy etc.
Connection: RF, RTJ
Operation: Manual, Pneumatic, Electric
API6D Trunnion-mounted ball valve
Size: NPS 2"~24" (DN50~DN600)
Pressure: ASME CLASS 150~2500(PN20~PN420)
Material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel ,exotic alloy etc.
Connection: RF, BW, RTJ
Operation: Manual, Pneumatic, Electric
