Orifice choke valve adopts a rotating fork, generally, orifice choke valve only need 90° or 180° rotating direction, in this way, switch can be regulated. Rotating fork possesses lock position at both ends, which greatly improve the stiffness of rotating fork and make it move stably, and in this way, vibration has been reduced. With actuator, fast and precise regulation can be realized. That's why we say orifice possesses a large range of application.
Size: 2-1/16"~4-1/16"
W.P.: 2,000psi ~ 15,000 psi

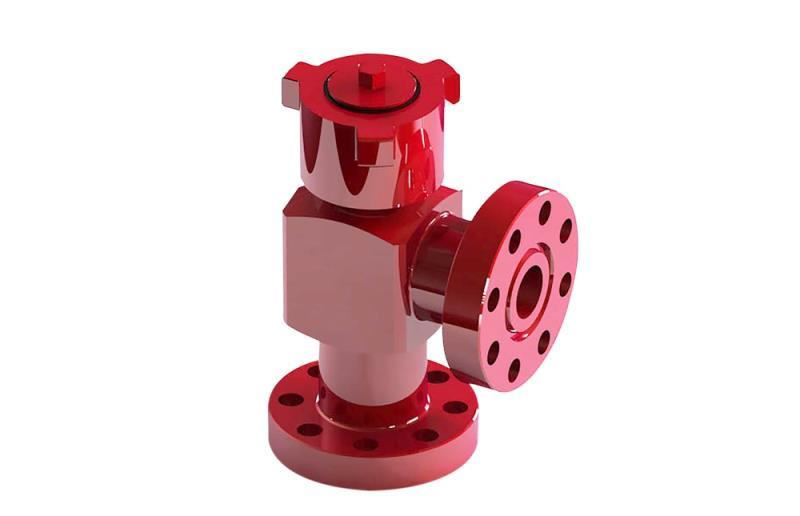

Positive Choke provides a fixed flow condition with a large selection of available bean sizes and types. All standard positive chokes under 10000psi wp are supplied with a blanking plug that has a ½" NPT port for attaching a needle valve and/or pressure gauge. Positive chokes 1 5000psi wp and over are supplied with a 9/16" autoclave port.
Size : 2-1/16"~ 7-1/16"
W.P.: 3,000 ~ 20 ,000psi

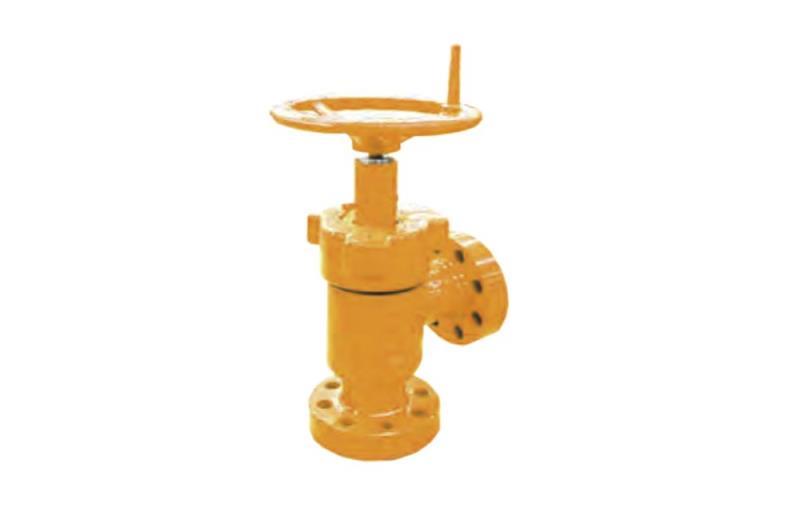

The Plug and Cage Choke moves up and down by rotating the handwheel or under the action of the driver, So as to change the orifice area of the seat core and achieve the purpose of limiting the flow. The Plug and Cage Choke is generally used in high yield, medium pressure drop conditions; Due to its high flow characteristics, it is generally used in the later stage of wellhead production.
Size: 2-1/16"~ 5-1/8"
W.P.: 3,000 ~ 20,000psi

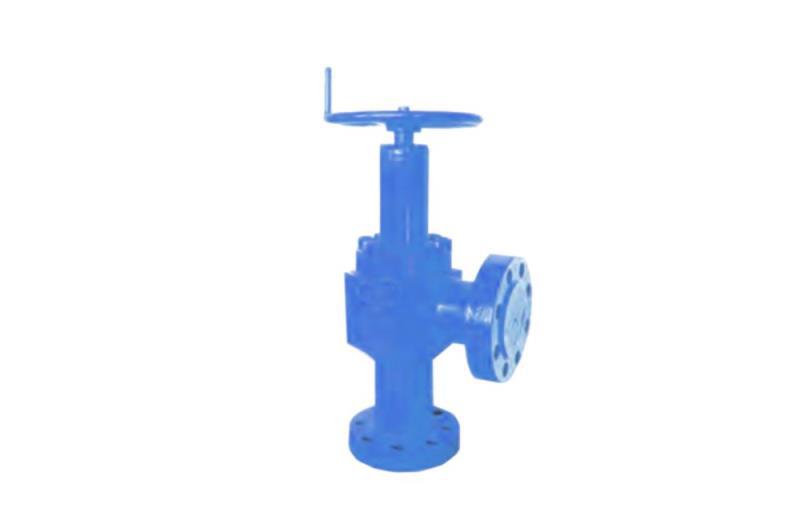

The External Sleeve Choke has a sleeve that throttles the flow on the outside diameter of the ported cage. This choke is used for low capacity/high pressure drop applications. The external sleeve is specifically designed for severely erosive conditions where the combination of high pressure drops and high sand concentrations can reduce the life of a choke .
Size: 2-1/16" ~ 5-1/8"
W.P.: 5,000 ~ 20,000psi

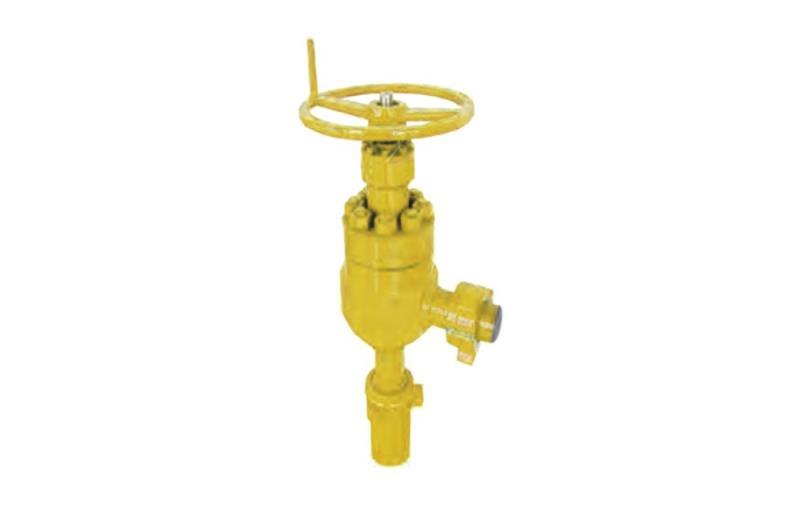

Adjustable Choke Valve has forged steel valve body, which is characterized as high pressure resistance and erosion resistance. It can be operated manually. The structure is simple and maintenance is easy.
Size: 2-1/16"~4-1/16"
W.P.: 2,000psi~15,000 psi

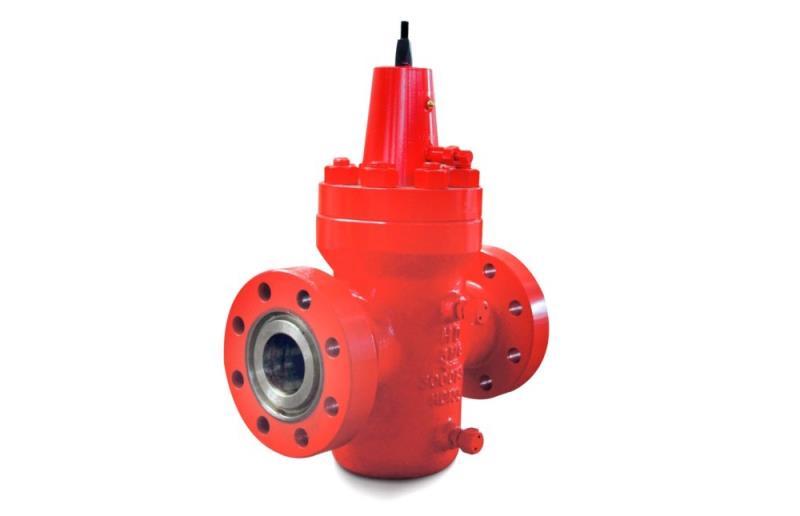

Slab gate valves are proved to have the advantages of reliability and interchangeability by oil field. According to customer's requirements, an actuator, such as TCX series diaphragm actuator, pneumatic actuator, and hydraulic actuator can be equiped on the valve. We can provide forged or cast valves with rated working pressure of 2,000~20,000psi and size of 1-13/16 "~ 7-1 /16".
Size: 1-13/16"~ 7-1/16"
W.P.: 2,000 ~ 20,000psi

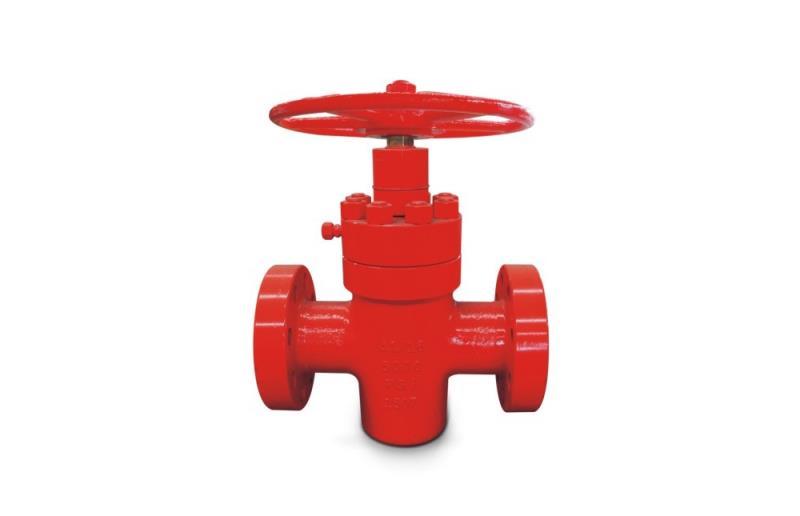

Expanding gate valves are designed with non-rising stem and expanding split gate. The sealing performance is safe and reliable. lt can provide threaded end and flange end connection with rated working pressure of 2,000-5,000psi. The valve is suitable for all field environments.
Size: 2-1/16"~ 7-1/16'
W.P.: 2,000 ~ 5,000psi

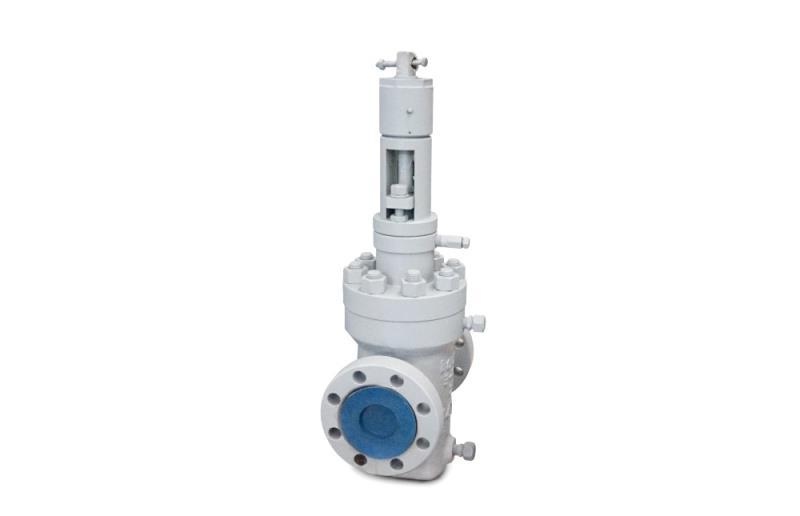

Thermal gate valve is a high temperature gate valve, which is applied to heavy oil thermal recovery, geothermal and other high-temperature conditions of oilfield wellhead, christmas tree and other equipment, It has excellent high temperature sealing performance.
Size: 2-1/16" ~ 4-1/16"
W.P.: 2,000psi ~5,000psi
Hydraulic Fracturing Gate Valve

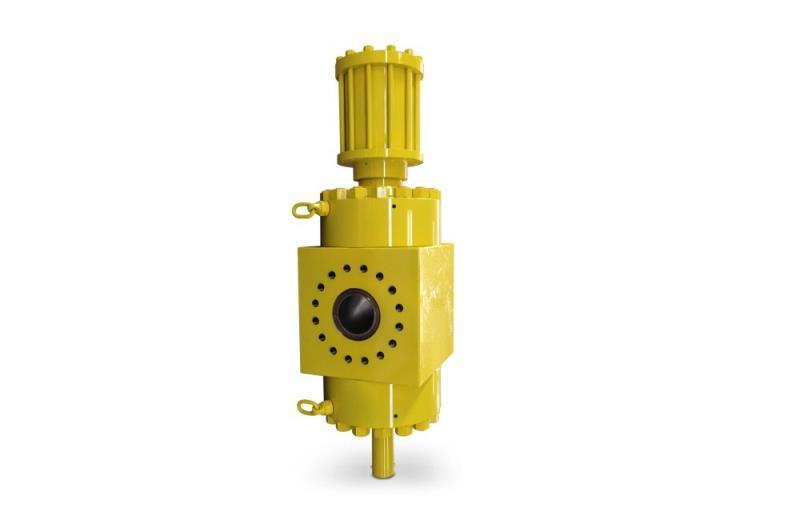

Fracturing gate valve is applied in fracturing project and it is an important part of fracturing equipment. The fracturing gate valve is designed in accordance with performance requirements of API 6A. The fracturing gate valve manufactured by TCX has maximum drift of 7-1/16" and maximum pressure of 20000psi.Fracturing technology adopted by TCX is internationally advanced technology.
Size: 2-1/16"-7-1/16"
W.P.: 5,000psi~20,000psi
