About UsTCX VALVE GROP is a global valves supplier created through the efforts of dedicated people with advanced technology in valves design and produce to achieve the highest quality products and package services.
-
Industry Application
We promise that all steel sold will have a 2-year warranty period .
PRODUCTS
CONTACT US
If you are interested in cooperation, please contact us immediately, we will give you feedback as soon as possible!
Mobile
South Ring Road, Dafeng Economic Development Zone, Jiangsu Province, China
Address
Fracturing gate valve is applied in fracturing project and it is an important part of fracturing equipment. The fracturing gate valve is designed in accordance with performance requirements of API 6A. The fracturing gate valve manufactured by TCX has maximum drift of 7-1/16" and maximum pressure of 20000psi Fracturing technology adopted by TCX is internationally advanced technology.
Size: 2-1/16"-7-1/16"
W.P.: 5,000psi~20,000psi

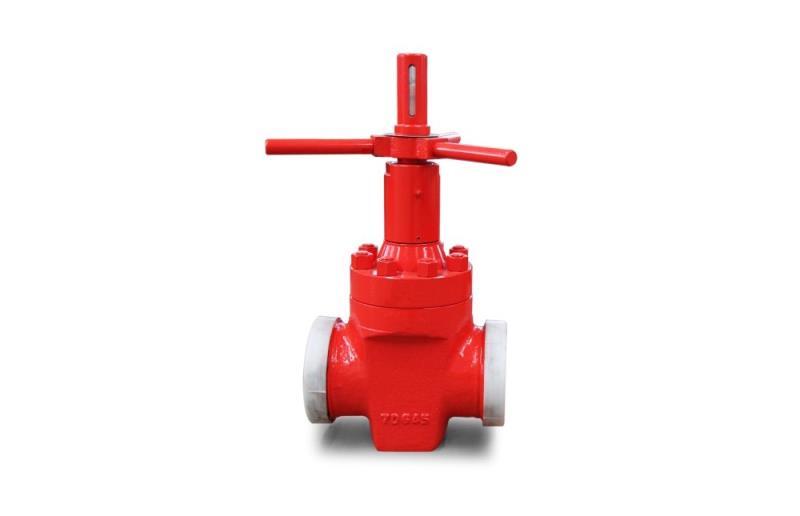

Mud valves are specially designed for using in harsh oil field environments. They are reliable in design and perform well in abrasive environments.
Size: 1-13/16"~ 5-1/8"
W.P.: 2,000 ~ 10,000psi
Globe valve only allow unidirectional flow medium, installation direction, its stem opening and closing stroke is relatively short, has a very reliable cut-off function, and because of the change of valve seat opening and disc stroke is proportional to the relationship, suitable for the flow of the regulation, simple structure, convenient maintenance.
Size: 2-1/16" ~ 4-1/16"
W.P.: 3,000 ~ 10,000psi

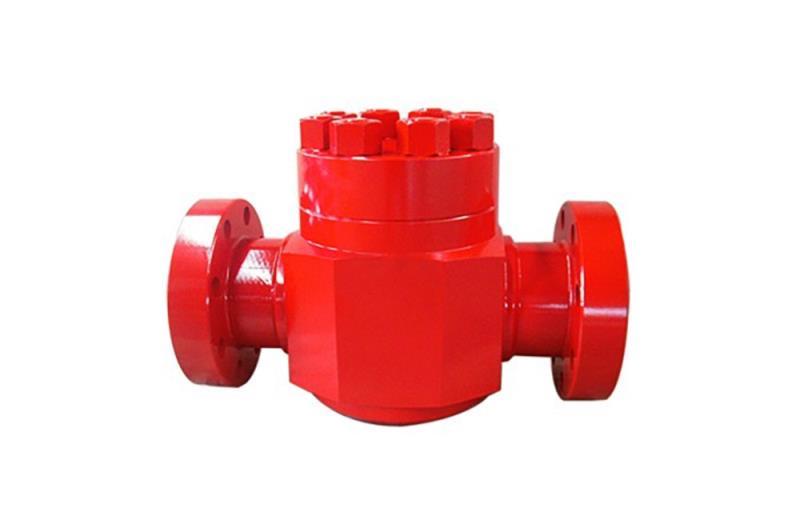

Lift Check Valve are spring return type unidirectional valves with guide rod for reliable sealing. Designed for use in high pressure mud choke manifold, high pressure Christmas Tree, choke and killlines, it is available with rated pressure of 2,000~ 20,000psi and size of 1-13/16"~7-1/16".
Size: 1-13/16" ~ 7-1/16"
W.P.: 2,000 ~ 15,000psi
Swing check valve is mainly used for unidirectional flow of medium on the pipeline, generally installed horizontally. The valve is opened or closed by the flow of the medium, which is suitable for the cleaning medium, not suitable for the medium with large solids and viscosity.
Size: 2-1/16" ~ 4-1/16"
W.P.: 5,000psi
The plug body of cylindric plug valve is in cylindrical shape, which makes up of a sealing pair with the tapered hole surface of valve body. Cylindric plug valve is generally sealed in four ways, namely, sealant, valve plug expansion, O-ring, eccentric plug wedges into valve seat.
Size: 1-13/16"~ 4-1/16"
W.P.: 10,000psi ~ 15, 000psi

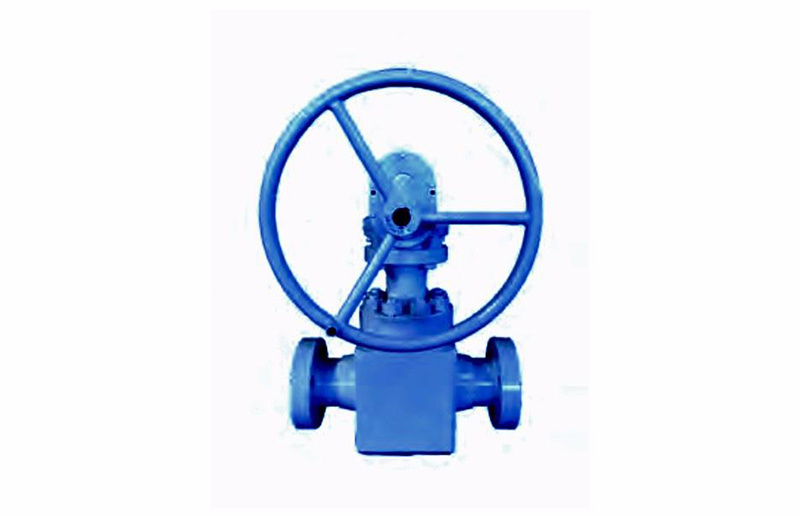

The plug body of tapered plug valve is in tapered shape, which makes up of a sealing pair with the tapered hole surface of valve body. The leakage gap for sealing pair of tapered plug valve can be adjusted by press the valve plug into valve seat. When valve plug close contact to valve body, valve plug can rotate too, or lift it and rotate 90 degree from valve seat before rotating, and then press to seal.
Size: 1-13/16"~ 4-1/16"
W.P.: 10,000psi ~ 15, 000psi

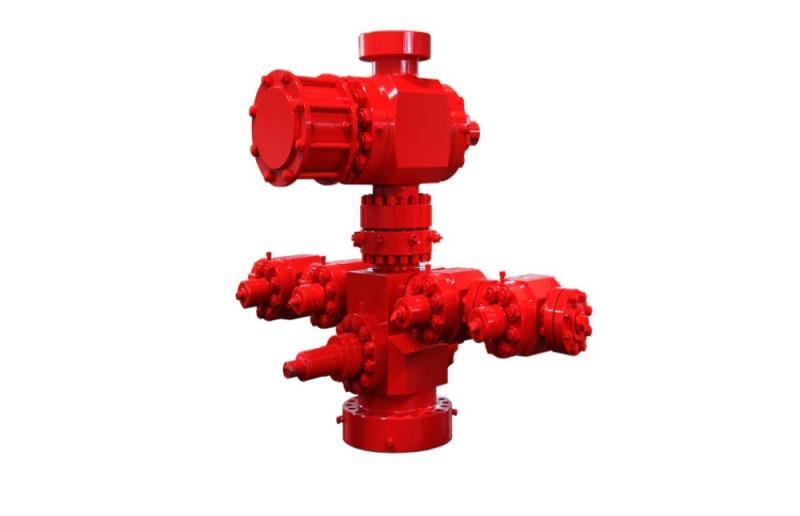

Single Completion Wellhead System
TCX designs, manufactures and markets Wellhead Equipments and Christmas Trees of all sizes, working pressures, and trims used in the drilling and completion of oil and gas wells onshore and offshore. TCX offers a complete line of conventional wellheads and christmas trees to suit all casing and tubing programs. Products are designed to fully comply with various industry standards, such as API Spec. 6A and NACE MR-0175.
TCX Single Completion Wellhead Systems can provide the flexibility, compatibility and interchangeability required for a wide range of applications. The wellhead systems we supplied to the worldwide oil industry have matched the applications requirements. And we can help the clients to reduce costs and always offer the best servise for the users all over the world.
W.P.: 2,000psi~15,000psi
M.C.: AA, BB, CC, DD, EE, FF, HH
T.R.: K~U
PR: PR1, PR2
PSL: PSL1 ~ PSL3
Dual Completion Wellhead System
TCX Dual Completion Wellhead Systems are developed for all multiple tubing string completions.
The tubing head is combined with dual tubing hanger which is able to suspend multiple strings within one wellhead component. It decreases the weitght and size of the overall wellhead system. The composite block is equiped with master valve, tee and swab valve, and it enchances the safety aspects of the tree by reducing the number of leak paths to the minimum and can be configured to suit for the different well site.
W.P.: 2,000psi ~ 10,000psi
M.C.: AA, BB, CC, DD, EE, FF
T.R.: K~U
PR: PR1, PR2
PSL: PSL1 ~ PSL3
